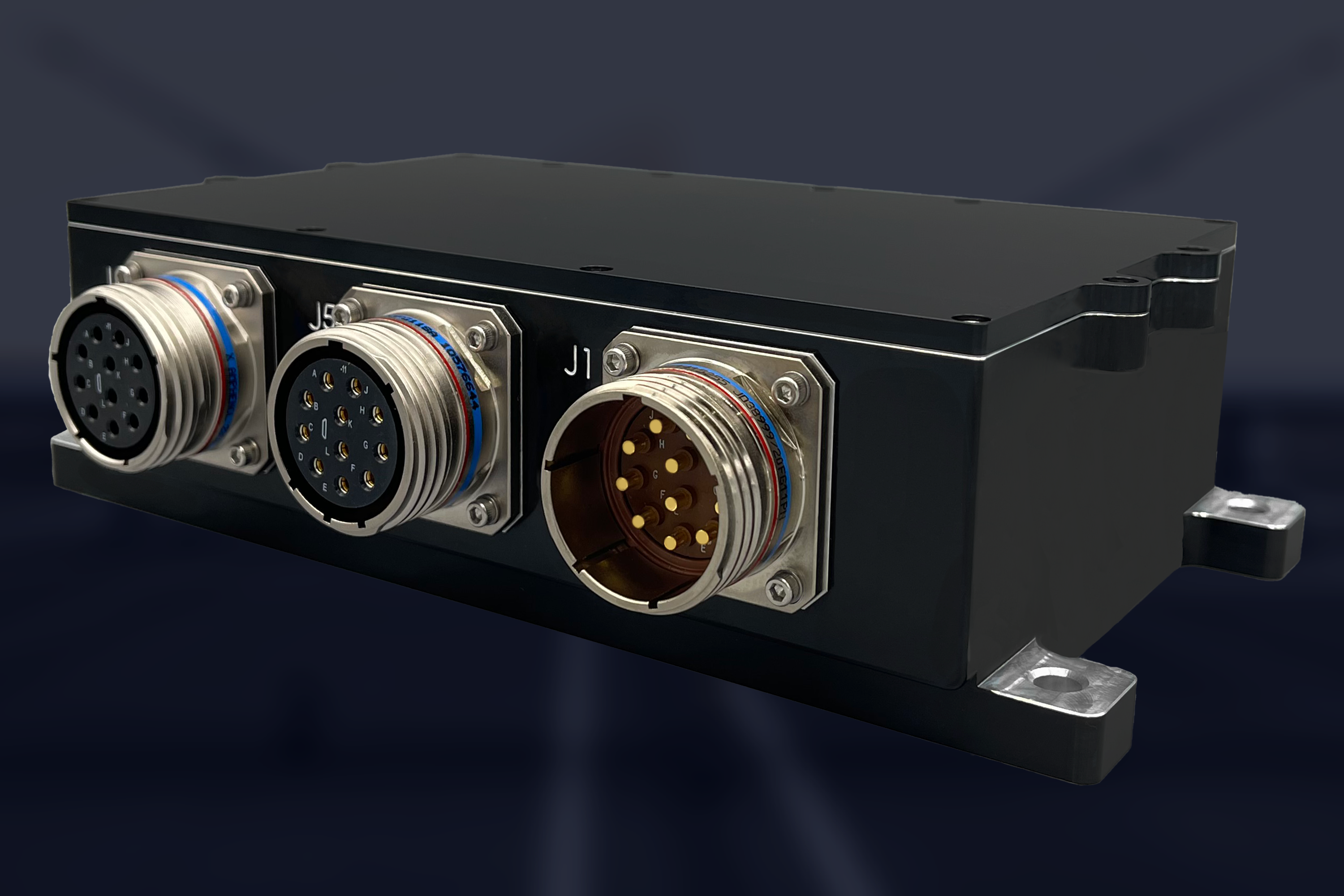

Draco – Versatile High-Power Density Servo Drive
ESI Motion’s Draco Servo Drive builds upon the success of our flagship Dragon servo motor line with size and weight reductions, and performance increases, utilizing state-of-the-art wide bandgap technology. It is available in multiple configurations to fit a myriad of applications. Draco incorporates our rugged, high-density DSP controller and power driver modules, offers several feedback options, and is packaged in a military-grade submersible case.
We can modify or customize to your specifications.
An Adaptable Rugged Drive Solution
This versatile servo drive is ideal for high-performance applications operating outdoors, at high temperatures, in high vibration, or other extreme environmental conditions. It comes with an industry benchmark Graphical User Interface, allowing the most flexible and precise system integration and control.
ESI Motion’s servo drive systems are designed for precision military, aviation, automotive, robotics, and specialized industrial applications where size and weight are critical. ESI Motion products are designed and built at our USA facility.
Configure The Draco To Your Exact Servo Specifications
For application specific questions, or to speak with ESI about designing a modified drive based on the Dragon, call or email ESI Motion. Discover what makes our ruggedized servo drives the best choice for extreme conditions and configure the perfect servo drive controller at ESI Motion.
Feature highlights include:
- Torque, velocity or position control
- Single or dual channel
- High-power density DSP controller
- Multiple power driver options
- MIL-STD-461 EMI filter
- Active inrush limiter
- Regeneration switch
- Multiple feedback options
- Configurable, user-friendly GUI with built-in scope features
Applications:
- Winch control
- Countermeasure electronics
- Special mission equipment
- Vehicle modernization
- Environmental systems
- Many more!
Features
Specifications
| NOMINAL Vbus OPTIONS | 300VDC or 600VDC |
|---|---|
| MAXIMUM CONTINUOUS OUTPUT CURRENT | 40A Per Axis (80A for paralleled axis model) |
| MAXIMUM DC POWER | 29 kW |
| TEMPERATURE | -40ºC to 71ºC |
| ELECTRICAL SPEED | Up to 75,000 RPM |
| WEIGHT SINGLE CHANNEL DUAL CHANNEL | 5.36 lbs 5.57lbs |
| EFFICIENCY | >97% (FULL LOAD) |
| FEEDBACK OPTIONS | Sensorless, Encoder, Quadrature Encoder, Resolver, Hall & BiSS-C |
| PACKAGING | Ruggedized |
| SIZE | 9.38” L x 6.63” W x 2.60” H |
What Can The Draco Do For You?
Discover the unparalleled capabilities of the Draco, designed to redefine motion control in demanding applications. Whether you're aiming for precise positioning or dynamic performance, the Draco series empowers your systems with cutting-edge technology.
Contact us today to discuss how the Draco series can elevate your motion control systems. Our team is committed to providing tailored solutions that meet and exceed your expectations. Let ESI Motion be your partner in achieving unparalleled performance and reliability
