Extreme High-Power Density Module

This exceptionally lightweight efficient controller is one of the smallest high power drives on the market today. At 24kW the Scorpion is capable of performing in demanding applications and incorporates our rugged controller and power driver modules, offers multiple feedback options and is packaged in a potted plastic case.

img-fuild
Dynamic Power & Pocket-sized

Dynamic Power & Pocket-sized

The Scorpion operates at 610V and is the latest innovative solution in our highly capable servo drive line. This modular solution is small enough to fit in your pocket yet powerful enough to power up a high voltage ground vehicle. It is an exceptionally powerful controller in our expanding high voltage product line.

To achieve this level of performance, the Scorpion I/O Board is strategically packaged in a potted plastic case, allowing for extreme durability in a compact size. Like our preexisting servo drives, it is ruggedized and compact. Unlike a typical control unit of this scale, the Scorpion, like its larger cousins, is engineered to withstand conditions that would destroy other motor controllers.

Feature highlights include:

  • Wide temperature range
  • Compact 2.6” L x 4.0” W x 1.8” H
  • Lightweight & efficient
  • High power density
  • Configurable, user-friendly GUI with built-in scope feature
  • Torque, velocity or position control

Applications:

  • Radar
  • Turret control
  • Robotic arm positioner
  • Unmanned systems
  • Weapons release mechanisms

10+ Configurations

Specifications

BUS VOLTAGE (DC) 24V-610V
PEAK MOTOR CURRENT Up to 80A
OUTPUT POWER 24kW
TEMPERATURE -40ºC to 71ºC
ELECTRICAL SPEED Up to 75,000 RPM
WEIGHT 1 lb. (453g)
SIZE 2.6” L x 4.0” W x 1.8” H

Downloadable Materials

Extreme High-Power Density Module

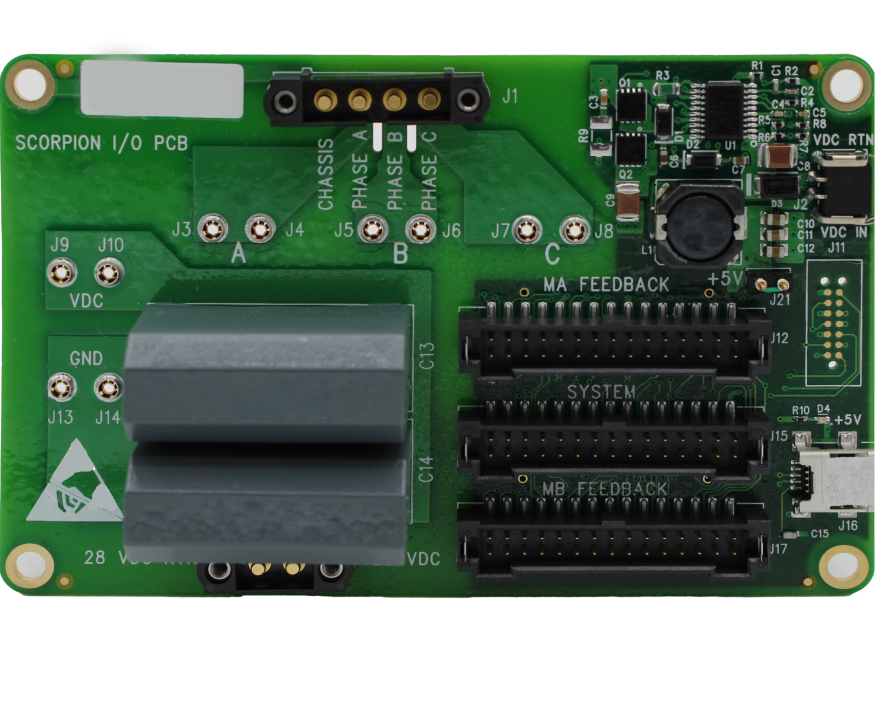

The Scorpion I/O Board is an optional circuit board that can be purchased along with the Scorpion Servo Module. The I/O Board provides the user with a platform that can be used for rapid system development with readily-available connectors, prior to the design of a user-defined Board that will mate with the Scorpion Servo Drive Module.

The I/O Board provides all the connections necessary for motor control. Signals are arranged into groups, by connector: Motor A Feedback, System / Service (including Communication), and Motor B Feedback, and voltages are arranged by VBUS In, 28 VDC In, and Motor Phases A/B/C Out.

Refer to ESI Document 100322, Scorpion Datasheet for the electrical characteristics of each signal and voltage.

A 5 V regulator on the I/O Board is used convert the 28 VDC Input to power both the Scorpion Servo Module controller (VLOGIC) and external motor feedback devices (up to 2.5 A).

img-fuild

Features:

  • Facilitates rapid initial integration and lab test
  • Voltage conversion from 28 VDC provides 5VDC to power both Scorpion’s VLOGIC and external motor feedback devices (up to 2.5A)
  • 5V Power LED Indicator
  • Size: 4” L x 2.6” W x 1.0” D

Standard Connectors for:

  • VBUS Power Input
  • 28VDC Input
  • Motor Power Phases A, B & C Outputs
  • Two Feedback Connections
  • System / Communications
  • USB

Downloadable Materials

What Can The Scorpion Do For You?

The Scorpion is as powerful as it is easy to use. This servo drive module evolved from our long running Dragon series 24V to 610V, the core of ESI Motion’s integrated “plug-and-play” control solutions. It provides unprecedented power in a lightweight compact size. Our engineers are available to work with your engineering team to configure the Scorpion according to your project requirements. We can help you design the perfect variation quickly and efficiently, as well as determine production needs. For more information about the Scorpion and its capabilities, download the Scorpion Datasheet below. Contact ESI Motion to begin working with our team on your servo drive solution today!

If you have any questions, visit our FAQ .
