Zeus Motor/Generator Controller

This high power motor/generator controller offers high temperature operation and power density in excess of 7 kW/liter. The Zeus incorporates our rugged controller and Silicon Carbide (SiC) power stage, offers several feedback options, and is packaged in a military-grade submersible case. This versatile controller is ideal for electric propulsion and power generation systems, specialized military and industrial applications, operating at high temperatures, in high vibration or other extreme environmental conditions.

img-fuild

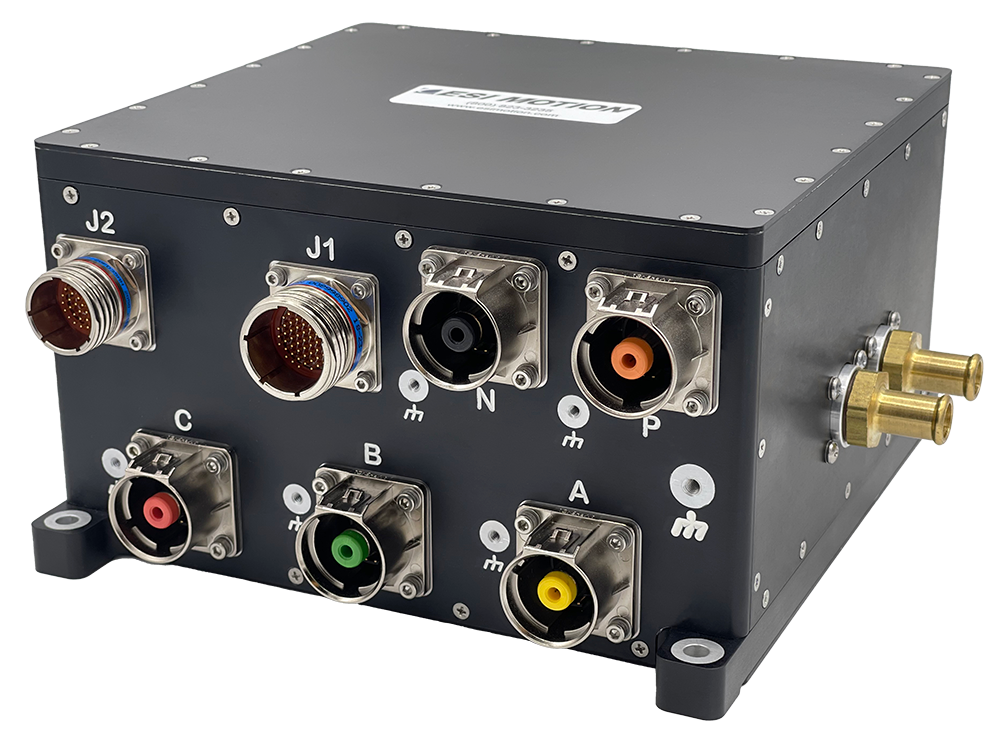

the zeus motor/generator controller

The Zeus Motor/Generator Controller Applications include:

  • Ground vehicles and electric propulsion
  • Military vehicles starter/generators
  • Military hybrid vehicles
  • Traction motor drives
  • Vehicle on-board generators
  • “Under the hood” elevated temperature applications
  • Electric taxis
  • Electric UAVs
  • Other power & Commercial applications
  • & Much more!

Want more information? Read on and download the Zeus Datasheet at the bottom of the page

Or

Contact us at sales@esimotion.com

Features:

  • Single-Axis configuration
  • Shock & Vibration tolerant construction
  • High Voltage Interlock
  • Integrated EMI filter and active Inrush limiter
  • Configurable, user friendly GUI with enhanced data collection capability
  • MIL-STD-810, MIL-STD-1275, MIL-STD-704, MIL-STD-461

Specifications

Bus Voltage 48V to 600V
Continuous Motor Current 180A
Output Power 75kW
Operating Temperature –40° C to 71°C
Maximum Electrical Speed 75K RPM
WEIGHT 25 lbs./ 11.34 kg
SIZE 9.56” L x 9.86” W x 5.08” H

Downloadable Materials
