Extreme Power, Extreme Precision, Single-Axis

The Single-Axis Mite is ideal for applications where a Single-Axis drive is needed to power up a single motor; thus, providing extreme power and precision, in a tiny size. It is 2/3 the size of the Dual-Axis Mite Series module and yet it maintains the series’ light weight and high efficiency features.

The Single-Axis Mite module offers several feedback interface options such as Sensorless, Encoder, Resolver, Hall and BiSS-C providing a user friendly and configurable platform. The user can pick and choose feedback options without compromising power where size and weight are critical.

The built in DSP and Mosfet Power Driver combined with the cutting-edge software capabilities, ensure the highest level of performance without compromising power or performance.

img-fuild
Giant Power, Giant Reliability, Small Footprint

Giant Power, Giant Reliability, Small Footprint

ESI Motion’s Single-Axis Mite module significantly cuts down on development time and costs by providing exactly what a one motor operation requires, singular motor control. This module controls the speed and position of the motor regardless of load.

The Single-Axis Mite module is ideal for precise and specialized applications for projects that require the control of one motor. Not only is this module series compact and powerful it resolves cumbersome power issues.

What Can The Single-Axis Mite Do For You?

Our servo drives consistently power up the fastest and most power-dense motion systems in the world. To learn more about the modules, products and engineering services we provide, please contact ESI Motion today by calling +1.800.823.3235 or email sales@esimotion.com. Our team of engineers is ready to assist researchers, developers, and other clients obtain the system components required to develop innovative solutions in all high-tech industries that enable your motion systems to work reliably every time.

Feature highlights include:

  • Wide temperature range
  • Aerospace ready
  • Compact size
  • High-power density
  • Configurable, user-friendly GUI with built-in scope features

Applications:

  • Gimbals & antenna positioners
  • Missiles & armaments
  • Satellites
  • Unmanned systems
  • Robotics

75+ Configurations

Specifications

BUS VOLTAGE (DC) 10V-170V
PEAK MOTOR CURRENT Up to 40A
OUTPUT POWER 2kW
TEMPERATURE -40ºC to 71ºC -55ºC to 100ºC (Extended)
ELECTRICAL SPEED Up to 75,000 RPM
WEIGHT 1.9 oz (53.9g)
SIZE 2.0” L x 1.8” W x 0.8” H

Downloadable Materials

General Information

Mite Series IGIS

Mite Datasheet

I/O Board for the Mite Servo Drive Modules

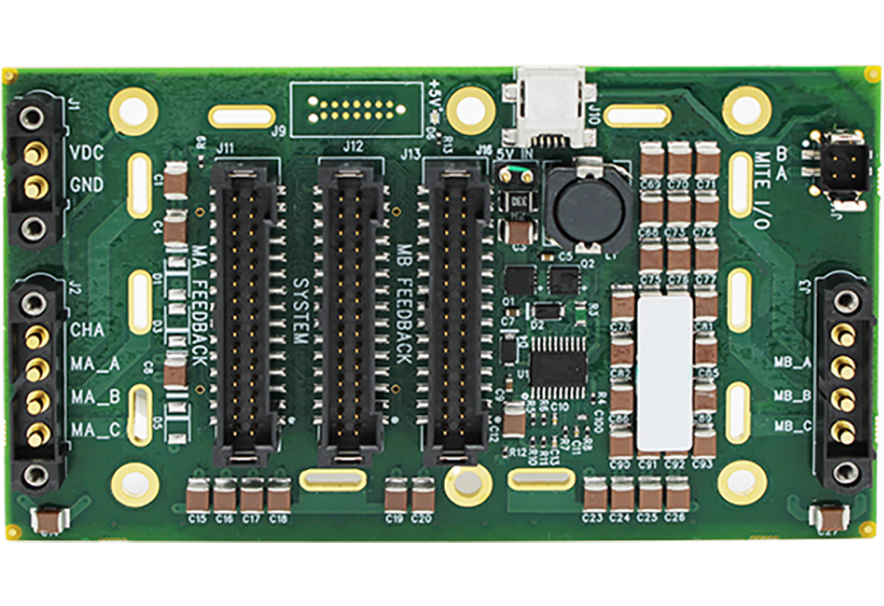

The Mite I/O Board is an optional circuit board that may be purchased in addition to the Mite Servo Drive Module. The I/O Board provides users with a platform to use for system development that will mate with the Mite Servo Drive Module prior to the design of a user-defined board. The Mite I/O Board provides all connections necessary for motor control, with convenient lab environment connectors for each signal and voltage group.

Refer to the Mite Datasheet (ESI Document 100236) for the electrical characteristics of each signal and voltage.

A 5V regulator is used on the I/O Board to power both the Mite Servo Drive Module controller (VLOGIC) and external motor feedback devices (up to 2.5A).

Note: An I/O board that will be used with VDC_IN (VBUS) greater than 75V requires the 5V regulator to be disabled. An I/O Board purchased with a Mite Servo Drive Module that is rated for 170V will already have the 5V regulator disabled. In this case, a separate 5V input voltage must be supplied.

img-fuild

Features:

  • Facilitates fast initial integration and lab testing
  • Ability To Run One or Two Motors
  • 5V Power LED Indicators
  • Size: 4.0″L x 2.3″W x 0.35″D
  • Brake Drivers (accepts TTL brake commands from the Mite and provides output to the brakes)

Standard Connectors for:

  • VDC_IN
  • Motor A & B Power Outputs
  • Motor A & B Feedback
  • System/Communications
  • Brakes

Downloadable Materials

Important information

ESI Motion makes no warranty, either express or implied, including but not limited to any implied warranties of merchantability and fitness for a particular purpose, regarding any marketing materials and makes such materials available solely on an “as-is” basis. In no event shall ESI Motion be liable to anyone for special, collateral, incidental, or consequential damages in connection with or arising out of the purchase or use of these materials, and the sole and exclusive liability of ESI Motion, regardless of the form of action, shall not exceed the purchase price of this product. Moreover, ESI Motion shall not be liable for any claim of any kind whatsoever against the use of these materials by any other party.
