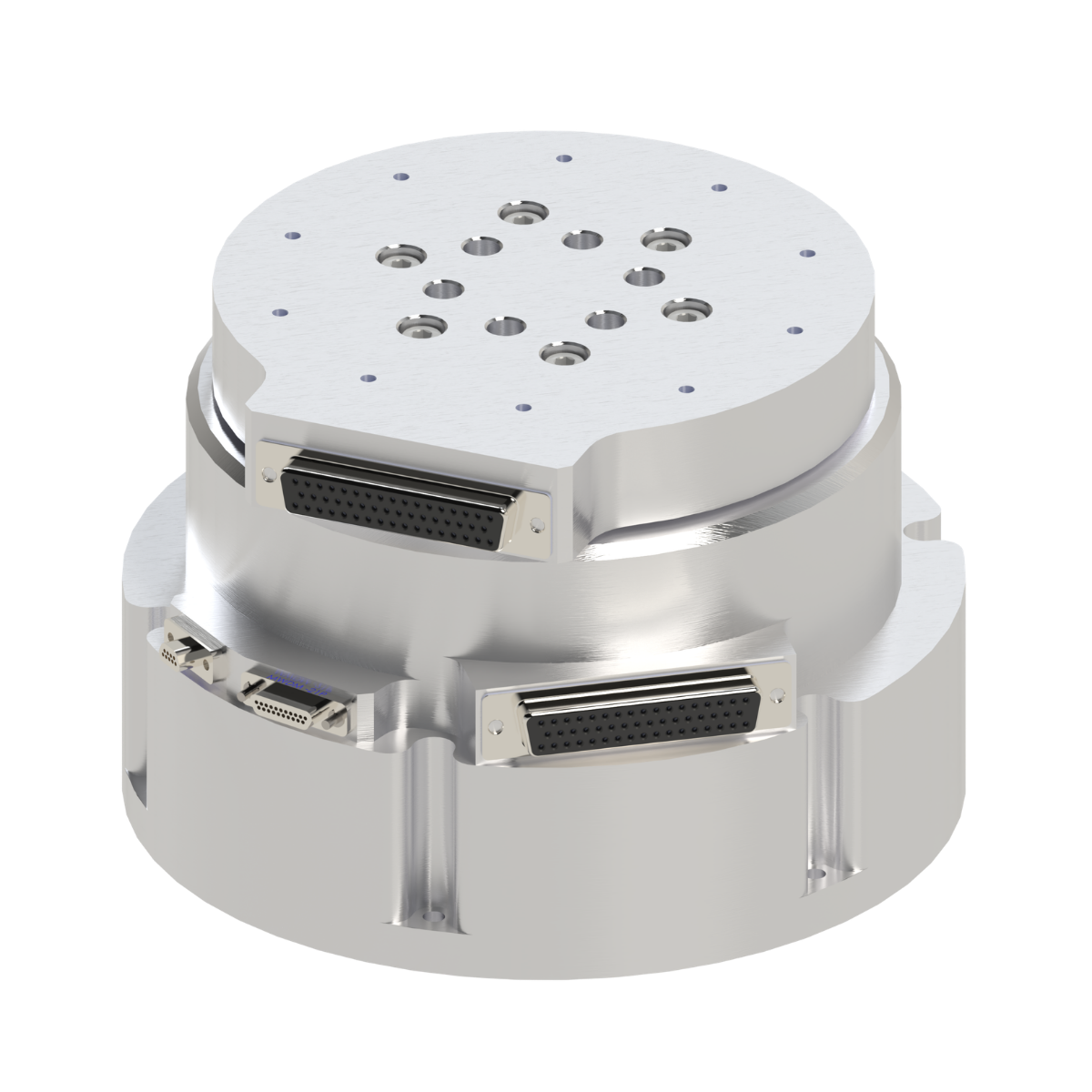

Titan SADA Actuator
The Titan is a high-load, radiation-tolerant single-axis actuator designed specifically for spacecraft applications - utilizing groundbreaking advancement in engineering, designed to withstand the harshest radiation environments with unwavering precision while providing stability under many types of loads
Order a full system with our Solar Array Drive Electronics and your system will arrive completely tuned and ready to go! Contact Us to see how both SADA and SADE can help you with your application.
All ESI Actuators can be paired with Our Radiation Tolerant Space Motion Controllers.
SADA Features
- Radiation Tolerant, High-Performance Actuator
- Available Configurations for Single-Axis
- Communication Interfaces
- CAN
- RS422
- Zero backlash, 0.1 degree pointing accuracy, 0.015 degree step size and microstepping to less than 0.0001 degree.
- User-friendly GUI with Integrated Oscilloscope
- Motor Type: Permanent Magnet
Titan Single-Axis Specifications
| Unpowered Holding Torque: | 6.75 NM |
|---|---|
| Max Load (Output Torque): | 226 NM |
| Torsional Stiffness: | 1.9e4 NM/rad |
| Load Capacity: | 6,600N N |
| WEIGHT: | 6kg (13.2 lbs.) |
| SIZE: | 3.75" H, 7" Dia |
| Operating Temperature: | – 40 °C to 71 °C |
SADA Downloadable Materials:
